Fabric区块链Raft共识多机集群部署教程
摘要：fabric区块链Raft是Hyperledger Fabric 1.4.1中新增的排序服务模块，这个教程将介绍如何部署一个基于Raft排序服务的多机Fabric网络。相关教程推荐：Hyperledger Fabric Java开发详解Hyperledger Fabric Node.JS开发详解1、
Raft是Hyperledger Fabric 1.4.1中新增的排序服务模块，这个教程将介绍如何部署一个基于Raft排序服务的多机Fabric网络。
相关教程推荐：
Hyperledger Fabric Java开发详解Hyperledger Fabric Node.JS开发详解1、用Raft排序服务启动byfn示例BYFN是学习Hyperledger Fabric的一个很好的例子：它包含了Fabric网络的所有元素，并且在byfn.sh中完整表现出来。当我们不加任何参数运行这个脚本时，它将启动一个包含2个机构、4个peer和1个orderer（使用solo排序）的Fabric网络。byfn.sh的参数-o用来指定排序服务的类型：
./byfn.sh up -o 最新的BYFN网络设计中包含了5个orderer的密码学资料。如果使用Solo或Kafka排序服务，将值运行第一个Orderer（参见docker-compose-cli.yaml中的定义）。
当我们指定raft作为排序服务时的一个区别之处在于，使用configtxgen生成创世区块我们需要指定configtx.yaml中的SampleMultiNodeEtcdRaft配置端。其他的操作都保持不变。
最后，我们还需要启动其他4个orderer，这些内容在docker-compose-etcdraft2.yaml中定义。

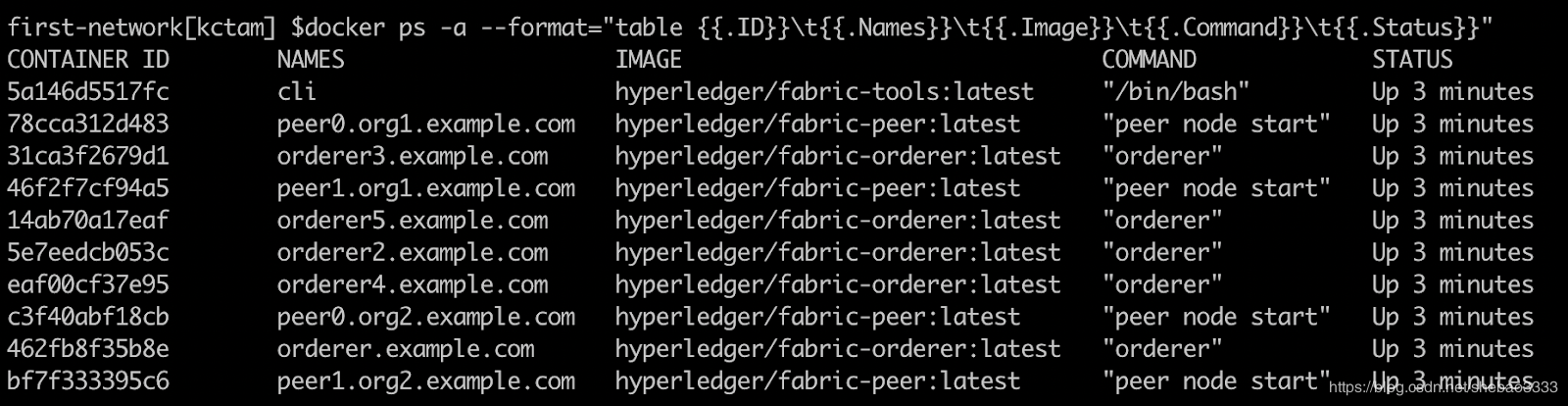

下面时基于raft排序的BYFN网络启动后的情况，你可以看到有5个orderer在运行：

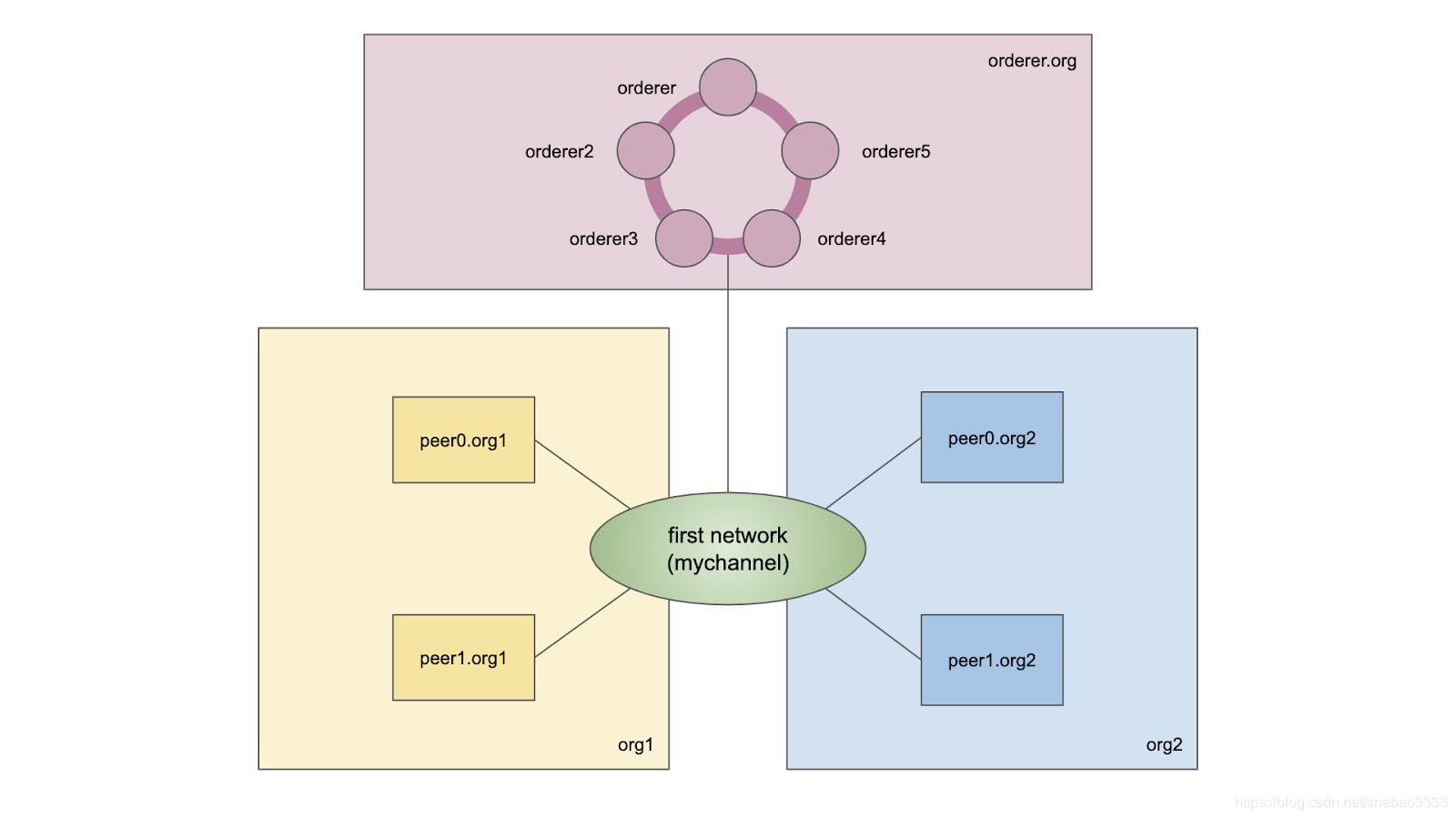

下面是基于Raft排序服务的BYFN网络的拓扑示意图：
在下面的内容中，我们将不再使用BYFN脚本，而是从零开始来学习如何构建多主机的Raft排序的Fabric网络。
2、Hyperledger Fabric多机部署的不同方案由于Hyperledger Fabric的组件以容器形式部署，当这些容器都在本机时会很顺利的工作。但是当这些容器需要运行在不同的主机上时，我们需要找出让它们彼此通信的办法。
虽然Hyperledger Fabric官方没有给出正式的推荐方案，目前大致有三种方案：
使用静态IP：通过指定容器运行的主机IP，容器之间就可以彼此通信。可以在docker-compose文件中使用extra_hosts方法来指定主机IP，当容器运行后，就可以在/etc/hosts文件中看到这些项。这一方案容易理解，我们也不需要依赖于外部组件，缺点在于所有的东西都是静态配置的，不利于需要动态修改配置的应用场景。
使用docker swarm：Docker Swarm是Docker环境中的原生容器编排服务。简而言之，Docker Swarm为跨主机的容器提供了一个叠加网络层，使容器彼此之间能够通信，就像在一台主机上一样。这一方案的好处在于原始的配置只需要简单修改就可以使用，也不需要在配置中硬编码像IP地址这样的静态信息。缺点在于需要依赖外部组件Docker Swarm。在这个教程中我们将使用这一方案。
使用Kubernetes：k8s使目前最流行的容器编排工具，其机制类似于Docker Swarm。我们已经注意到有一些教程尝试利用k8s来进行fabric的多机部署，但是使用k8s的难度要明显高于前两种方案。

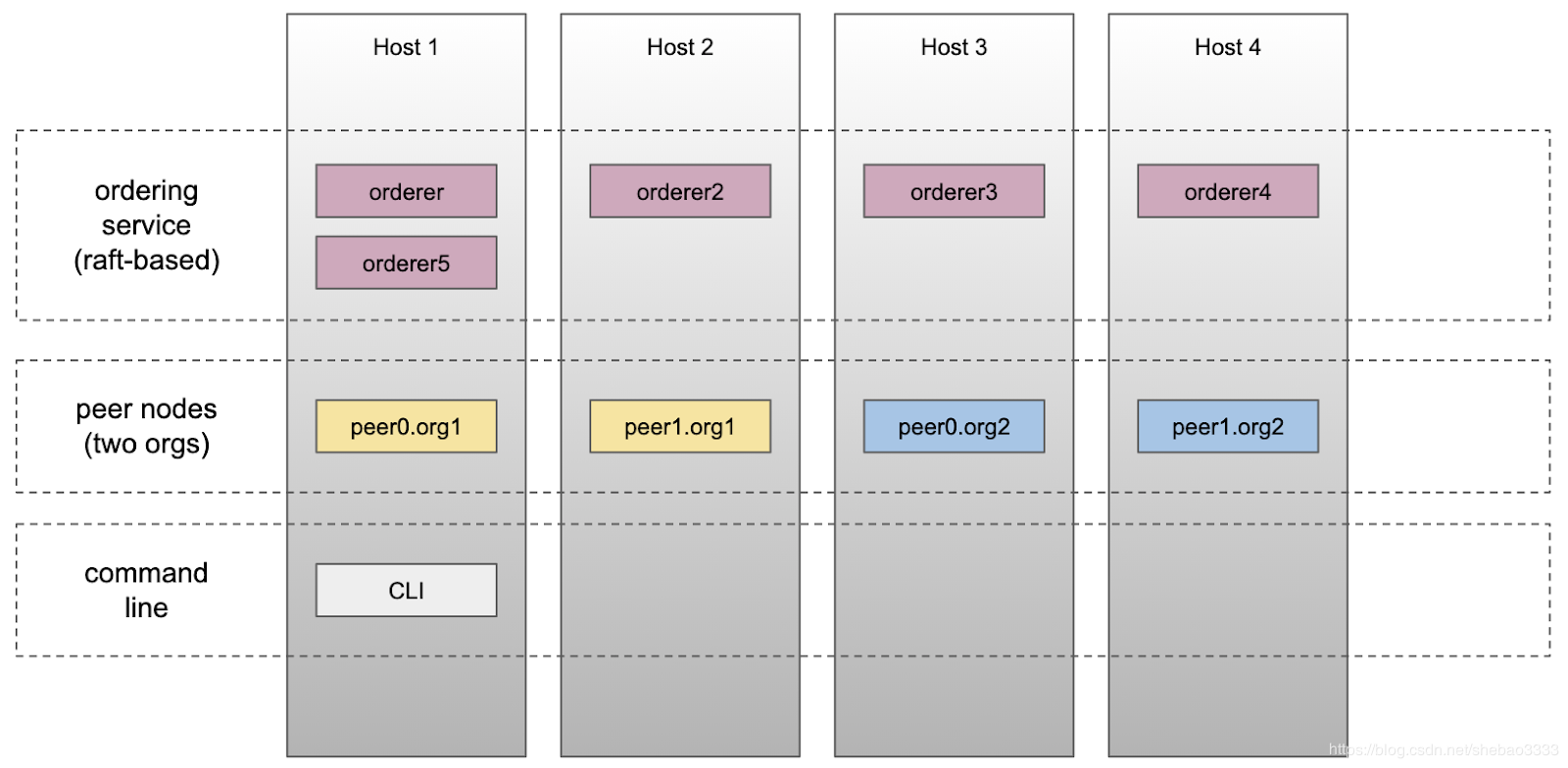

3、Fabrc Raft多机演示环境搭建我们需要将容器分发到4个主机，本教程使用AWS上的4个EC2实例，但是并不使用AWS提供的特别功能，仅仅是用它来运行Ubuntu以及必要的软件，采用公共IP进行通信。当然你可以可以选择其他的云服务提供商。
在Fabric网络启动运行后，我们将使用Fabcar链码进行测试。总体流程如下：

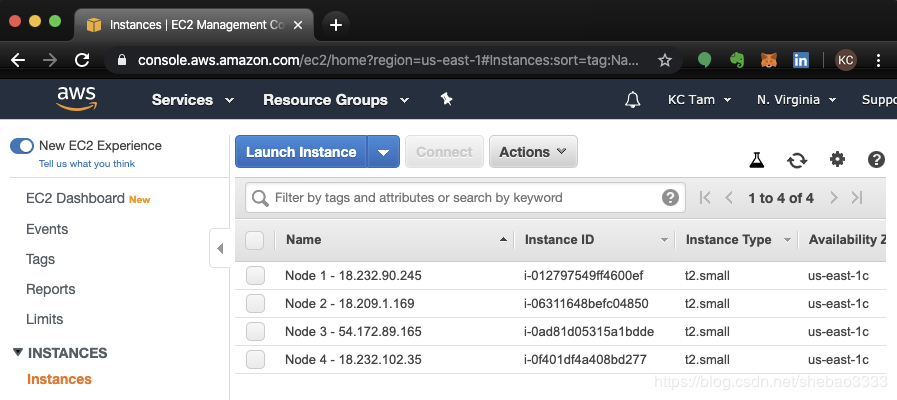

启动AWS EC2实例，安装必要的镜像和工具。构建一个叠加网络，将4个主机都加入该网络在主机1上准备所有资料，包括密码学资料、通道配置交易、每个节点的docker-compose 文件等。然后拷贝到其他主机。使用docker-compose启动所有组件创建通道mychannel并将所有peer加入该通道安装并实例化Fabcar链码调用查询链码方法4、Fabric Raft多机演示4.1 启动主机本教程使用AWS EC2 t2.small实例，使用fabric 1.4.4。注意在演示中我们使用了简化的全开放安全组，在生产环境中你应当根据自己的需求来决定开放哪些端口：
现在我们可以打开4个终端，分别对应每个主机：

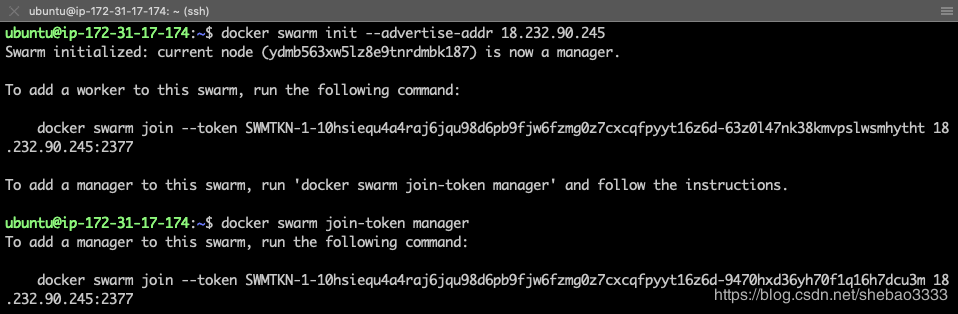

ssh -i ubuntu@ 从Host 1执行如下命令：
docker swarm init --advertise-addr docker swarm join-token manager 运行结果如下：
使用最后的输出，将其他节点以管理者身份加入swarm。

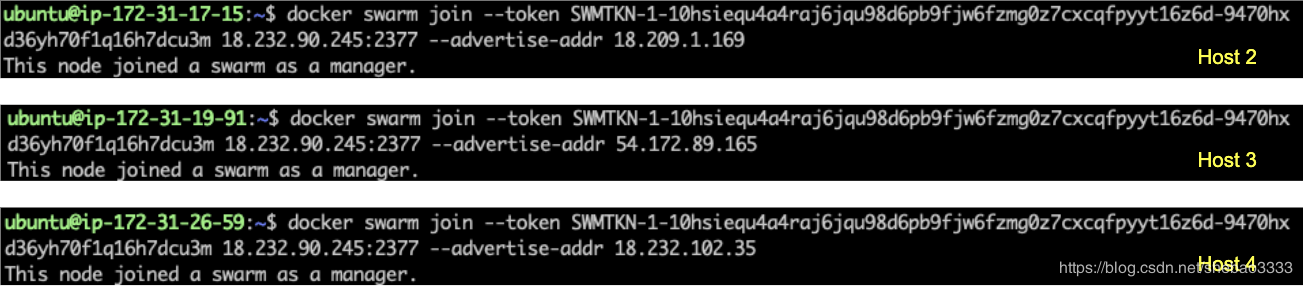

从host 2/3/4执行如下命令：
运行结果如下：
最后，我们添加一个叠加网络，该网络将用于下面的演示，这一步的操作只需要在一个节点上执行。如果Docker Swarm正常工作，所有的节点都会加入这个叠加网络。

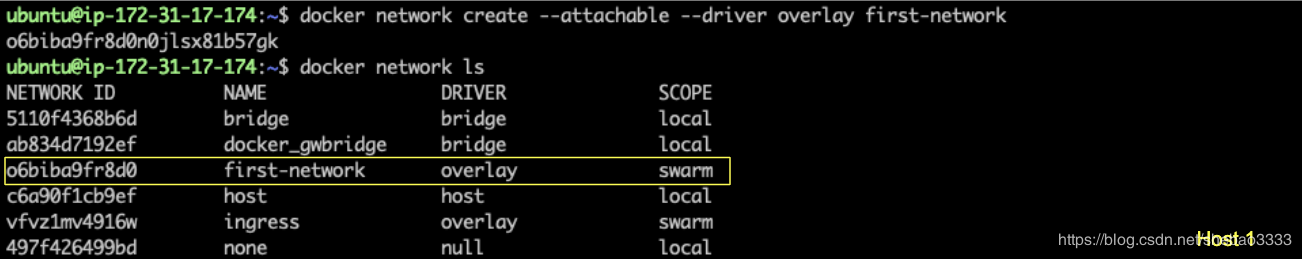

从host 1创建叠加网络first-network：
docker network create --attachable --driver overlay first-networkdocker network ls运行结果如下：

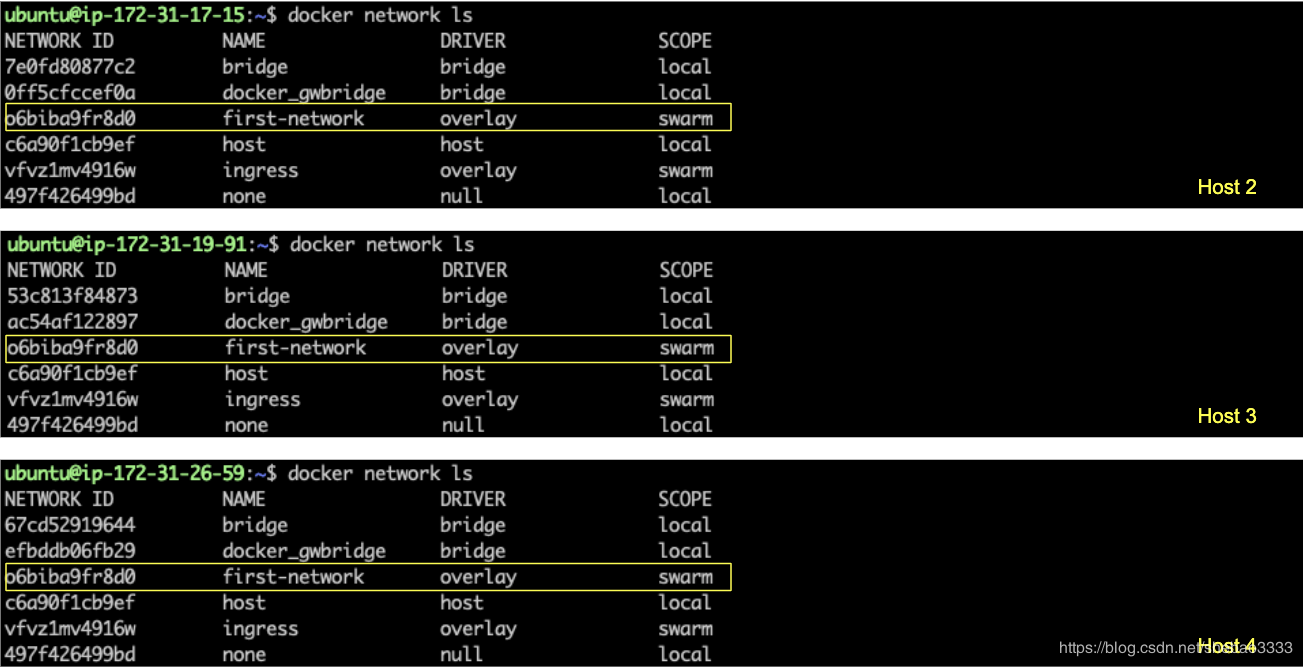

在其他主机上，我们可以看到这个网络：
现在已经构建好了叠加网络，这些信息将在稍后用于docker-compose文件。
4.3 在host 1上准备资料一个关键的环节时确保所有的Farbic成员使用相同的密码学资料。我们将使用host 1来创建这些密码学资料，然后拷贝到其他主机。
理论上，我们只需要确保个体身份（证书和签名私钥）遵循所要求的规范。一个机构的证书应当由同一个CA签发 —— 例如org1的证书应当由ca.org1签发。出于简化目的，在本教程中，我们在host 1上创建所有的密码学资料，然后将整个目录拷贝到其他主机。
首先进入fabric-samples目录，然后创建一个raft-4node-swarm目录。
在host 1上执行如下命令：

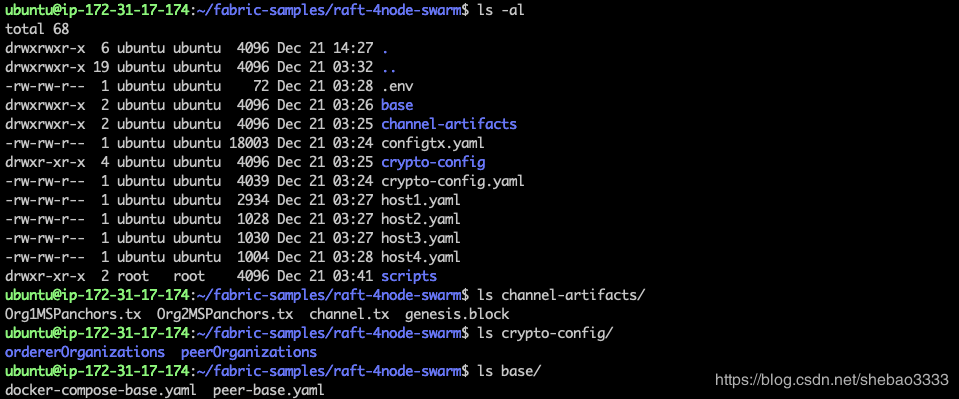

cd fabric-samplesmkdir raft-4node-swarmcd raft-4node-swarm直接从first-network拷贝crypto-config.yaml和configtx.yaml文件：
cp ../first-network/crypto-config.yaml .cp ../first-network/configtx.yaml .然后生成必要的密码学资料：
../bin/cryptogen generate --config=./crypto-config.yamlexport FABRIC_CFG_PATH=$PWDmkdir channel-artifacts../bin/configtxgen -profile SampleMultiNodeEtcdRaft -outputBlock ./channel-artifacts/genesis.block../bin/configtxgen -profile TwoOrgsChannel -outputCreateChannelTx ./channel-artifacts/channel.tx -channelID mychannel../bin/configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org1MSPanchors.tx -channelID mychannel -asOrg Org1MSP../bin/configtxgen -profile TwoOrgsChannel -outputAnchorPeersUpdate ./channel-artifacts/Org2MSPanchors.tx -channelID mychannel -asOrg Org2MSP现在我们为所有主机准备docker-compose文件，主要基于BYFN中的文件，需要创建6个docker-compose文件以及一个env文件：
base/peer-base.yamlbase/docker-compose-peer.yamlhost1.yamlhost2.yamlhost3.yamlhost4.yaml.env4.3.1 base/peer-base.yaml# Copyright IBM Corp. All Rights Reserved.## SPDX-License-Identifier: Apache-2.0#version: '2'services: peer-base: image: hyperledger/fabric-peer:$IMAGE_TAG environment: - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock # the following setting starts chaincode containers on the same # bridge network as the peers # https://docs.docker.com/compose/networking/ - CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=first-network - FABRIC_LOGGING_SPEC=INFO #- FABRIC_LOGGING_SPEC=DEBUG - CORE_PEER_TLS_ENABLED=true - CORE_PEER_GOSSIP_USELEADERELECTION=true - CORE_PEER_GOSSIP_ORGLEADER=false - CORE_PEER_PROFILE_ENABLED=true - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/tls/server.crt - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/tls/server.key - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/tls/ca.crt working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer command: peer node start orderer-base: image: hyperledger/fabric-orderer:$IMAGE_TAG environment: - FABRIC_LOGGING_SPEC=INFO - ORDERER_GENERAL_LISTENADDRESS=0.0.0.0 - ORDERER_GENERAL_GENESISMETHOD=file - ORDERER_GENERAL_GENESISFILE=/var/hyperledger/orderer/orderer.genesis.block - ORDERER_GENERAL_LOCALMSPID=OrdererMSP - ORDERER_GENERAL_LOCALMSPDIR=/var/hyperledger/orderer/msp # enabled TLS - ORDERER_GENERAL_TLS_ENABLED=true - ORDERER_GENERAL_TLS_PRIVATEKEY=/var/hyperledger/orderer/tls/server.key - ORDERER_GENERAL_TLS_CERTIFICATE=/var/hyperledger/orderer/tls/server.crt - ORDERER_GENERAL_TLS_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt] - ORDERER_KAFKA_TOPIC_REPLICATIONFACTOR=1 - ORDERER_KAFKA_VERBOSE=true - ORDERER_GENERAL_CLUSTER_CLIENTCERTIFICATE=/var/hyperledger/orderer/tls/server.crt - ORDERER_GENERAL_CLUSTER_CLIENTPRIVATEKEY=/var/hyperledger/orderer/tls/server.key - ORDERER_GENERAL_CLUSTER_ROOTCAS=[/var/hyperledger/orderer/tls/ca.crt] working_dir: /opt/gopath/src/github.com/hyperledger/fabric command: orderer# Copyright IBM Corp. All Rights Reserved.## SPDX-License-Identifier: Apache-2.0#version: '2'services: orderer.example.com: container_name: orderer.example.com extends: file: peer-base.yaml service: orderer-base volumes: - ../channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block - ../crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/msp:/var/hyperledger/orderer/msp - ../crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/:/var/hyperledger/orderer/tls - orderer.example.com:/var/hyperledger/production/orderer ports: - 7050:7050 peer0.org1.example.com: container_name: peer0.org1.example.com extends: file: peer-base.yaml service: peer-base environment: - CORE_PEER_ID=peer0.org1.example.com - CORE_PEER_ADDRESS=peer0.org1.example.com:7051 - CORE_PEER_LISTENADDRESS=0.0.0.0:7051 - CORE_PEER_CHAINCODEADDRESS=peer0.org1.example.com:7052 - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052 - CORE_PEER_GOSSIP_BOOTSTRAP=peer1.org1.example.com:7051 - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org1.example.com:7051 - CORE_PEER_LOCALMSPID=Org1MSP volumes: - /var/run/:/host/var/run/ - ../crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp:/etc/hyperledger/fabric/msp - ../crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls:/etc/hyperledger/fabric/tls - peer0.org1.example.com:/var/hyperledger/production ports: - 7051:7051 peer1.org1.example.com: container_name: peer1.org1.example.com extends: file: peer-base.yaml service: peer-base environment: - CORE_PEER_ID=peer1.org1.example.com - CORE_PEER_ADDRESS=peer1.org1.example.com:7051 - CORE_PEER_LISTENADDRESS=0.0.0.0:7051 - CORE_PEER_CHAINCODEADDRESS=peer1.org1.example.com:7052 - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052 - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org1.example.com:7051 - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org1.example.com:7051 - CORE_PEER_LOCALMSPID=Org1MSP volumes: - /var/run/:/host/var/run/ - ../crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/msp:/etc/hyperledger/fabric/msp - ../crypto-config/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls:/etc/hyperledger/fabric/tls - peer1.org1.example.com:/var/hyperledger/production ports: - 7051:7051 peer0.org2.example.com: container_name: peer0.org2.example.com extends: file: peer-base.yaml service: peer-base environment: - CORE_PEER_ID=peer0.org2.example.com - CORE_PEER_ADDRESS=peer0.org2.example.com:7051 - CORE_PEER_LISTENADDRESS=0.0.0.0:7051 - CORE_PEER_CHAINCODEADDRESS=peer0.org2.example.com:7052 - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052 - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer0.org2.example.com:7051 - CORE_PEER_GOSSIP_BOOTSTRAP=peer1.org2.example.com:7051 - CORE_PEER_LOCALMSPID=Org2MSP volumes: - /var/run/:/host/var/run/ - ../crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp:/etc/hyperledger/fabric/msp - ../crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls:/etc/hyperledger/fabric/tls - peer0.org2.example.com:/var/hyperledger/production ports: - 7051:7051 peer1.org2.example.com: container_name: peer1.org2.example.com extends: file: peer-base.yaml service: peer-base environment: - CORE_PEER_ID=peer1.org2.example.com - CORE_PEER_ADDRESS=peer1.org2.example.com:7051 - CORE_PEER_LISTENADDRESS=0.0.0.0:7051 - CORE_PEER_CHAINCODEADDRESS=peer1.org2.example.com:7052 - CORE_PEER_CHAINCODELISTENADDRESS=0.0.0.0:7052 - CORE_PEER_GOSSIP_EXTERNALENDPOINT=peer1.org2.example.com:7051 - CORE_PEER_GOSSIP_BOOTSTRAP=peer0.org2.example.com:7051 - CORE_PEER_LOCALMSPID=Org2MSP volumes: - /var/run/:/host/var/run/ - ../crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/msp:/etc/hyperledger/fabric/msp - ../crypto-config/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls:/etc/hyperledger/fabric/tls - peer1.org2.example.com:/var/hyperledger/production ports: - 7051:7051# Copyright IBM Corp. All Rights Reserved.## SPDX-License-Identifier: Apache-2.0#version: '2'volumes: orderer.example.com: orderer5.example.com: peer0.org1.example.com:networks: byfn: external: name: first-networkservices: orderer.example.com: extends: file: base/docker-compose-base.yaml service: orderer.example.com container_name: orderer.example.com networks: - byfn orderer5.example.com: extends: file: base/peer-base.yaml service: orderer-base container_name: orderer5.example.com networks: - byfn volumes: - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block - ./crypto-config/ordererOrganizations/example.com/orderers/orderer5.example.com/msp:/var/hyperledger/orderer/msp - ./crypto-config/ordererOrganizations/example.com/orderers/orderer5.example.com/tls/:/var/hyperledger/orderer/tls - orderer5.example.com:/var/hyperledger/production/orderer ports: - 8050:7050 peer0.org1.example.com: container_name: peer0.org1.example.com extends: file: base/docker-compose-base.yaml service: peer0.org1.example.com networks: - byfn cli: container_name: cli image: hyperledger/fabric-tools:$IMAGE_TAG tty: true stdin_open: true environment: - SYS_CHANNEL=$SYS_CHANNEL - GOPATH=/opt/gopath - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock #- FABRIC_LOGGING_SPEC=DEBUG - FABRIC_LOGGING_SPEC=INFO - CORE_PEER_ID=cli - CORE_PEER_ADDRESS=peer0.org1.example.com:7051 - CORE_PEER_LOCALMSPID=Org1MSP - CORE_PEER_TLS_ENABLED=true - CORE_PEER_TLS_CERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt - CORE_PEER_TLS_KEY_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key - CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt - CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer command: /bin/bash volumes: - /var/run/:/host/var/run/ - ./../chaincode/:/opt/gopath/src/github.com/chaincode - ./crypto-config:/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ - ./scripts:/opt/gopath/src/github.com/hyperledger/fabric/peer/scripts/ - ./channel-artifacts:/opt/gopath/src/github.com/hyperledger/fabric/peer/channel-artifacts depends_on: - orderer.example.com - peer0.org1.example.com networks: - byfn# Copyright IBM Corp. All Rights Reserved.## SPDX-License-Identifier: Apache-2.0#version: '2'volumes: orderer2.example.com: peer1.org1.example.com:networks: byfn: external: name: first-networkservices: orderer2.example.com: extends: file: base/peer-base.yaml service: orderer-base container_name: orderer2.example.com networks: - byfn volumes: - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block - ./crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/msp:/var/hyperledger/orderer/msp - ./crypto-config/ordererOrganizations/example.com/orderers/orderer2.example.com/tls/:/var/hyperledger/orderer/tls - orderer2.example.com:/var/hyperledger/production/orderer ports: - 7050:7050 peer1.org1.example.com: container_name: peer1.org1.example.com extends: file: base/docker-compose-base.yaml service: peer1.org1.example.com networks: - byfn# Copyright IBM Corp. All Rights Reserved.## SPDX-License-Identifier: Apache-2.0#version: '2'volumes: orderer3.example.com: peer0.org2.example.com:networks: byfn: external: name: first-networkservices: orderer3.example.com: extends: file: base/peer-base.yaml service: orderer-base container_name: orderer3.example.com networks: - byfn volumes: - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block - ./crypto-config/ordererOrganizations/example.com/orderers/orderer3.example.com/msp:/var/hyperledger/orderer/msp - ./crypto-config/ordererOrganizations/example.com/orderers/orderer3.example.com/tls/:/var/hyperledger/orderer/tls - orderer3.example.com:/var/hyperledger/production/orderer ports: - 7050:7050 peer0.org2.example.com: container_name: peer0.org2.example.com extends: file: base/docker-compose-base.yaml service: peer0.org2.example.com networks: - byfn# Copyright IBM Corp. All Rights Reserved.## SPDX-License-Identifier: Apache-2.0#version: '2'volumes: orderer4.example.com: peer1.org2.example.com:networks: byfn: external: name: first-networkservices: orderer4.example.com: extends: file: base/peer-base.yaml service: orderer-base container_name: orderer4.example.com networks: - byfn volumes: - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block - ./crypto-config/ordererOrganizations/example.com/orderers/orderer4.example.com/msp:/var/hyperledger/orderer/msp - ./crypto-config/ordererOrganizations/example.com/orderers/orderer4.example.com/tls/:/var/hyperledger/orderer/tls - orderer4.example.com:/var/hyperledger/production/orderer ports: - 7050:7050 peer1.org2.example.com: container_name: peer1.org2.example.com extends: file: base/docker-compose-base.yaml service: peer1.org2.example.com networks: - byfnCOMPOSE_PROJECT_NAME=netIMAGE_TAG=latestSYS_CHANNEL=byfn-sys-channel下面是目录中的内容：
下面是针对BYFN中的文件所作的修改：
base/peer-base.yaml中，CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE修改为 我们之前创建的叠加网络first-networkbase/docker-compose-base.yaml中，由于所有的peers都在不同的主机上，我们 将端口映射改回7051:7051。在每个peer的环境变量中也进行了相应的修改。在所有的hostn.yaml文件中，我们添加叠加网络first-network现在我们在host 1上准备好了所有资料，将该目录拷贝到其他主机。由于不能跨EC2实例拷贝文件，我们使用本地机器进行桥接操作：
# on Host 1cd ..tar cf raft-4node-swarm.tar raft-4node-swarm/# on my localhostscp -i ubuntu@:/home/ubuntu/fabric-samples/raft-4node-swarm.tar .scp -i raft-4node-swarm.tar ubuntu@:/home/ubuntu/fabric-samples/# on Host 2, 3 and 4cd fabric-samplestar xf raft-4node-swarmcd raft-4node-swarm 现在所有的节点都有了同样的密码学资料和docker-compose文件，我们可以启动容器了。
4.4 分别启动各主机上的容器我们使用docker-compose启动全部主机：

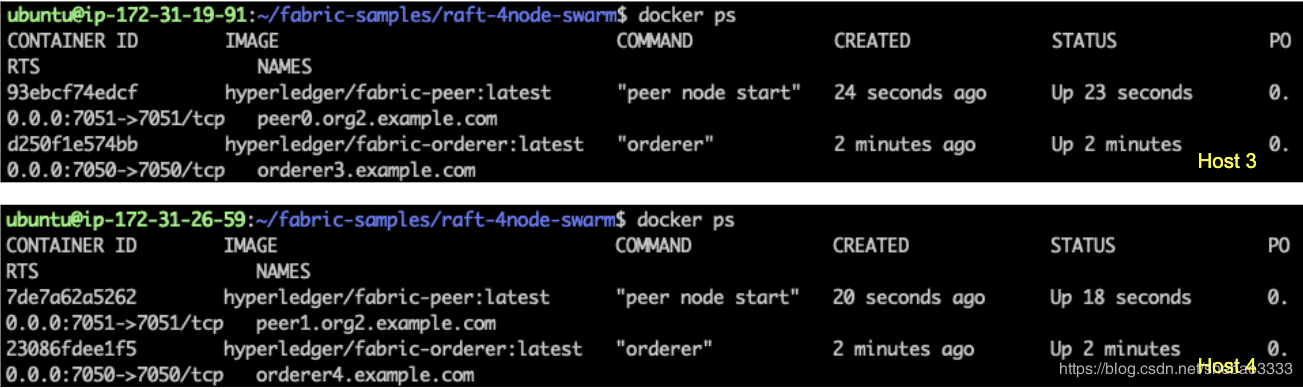

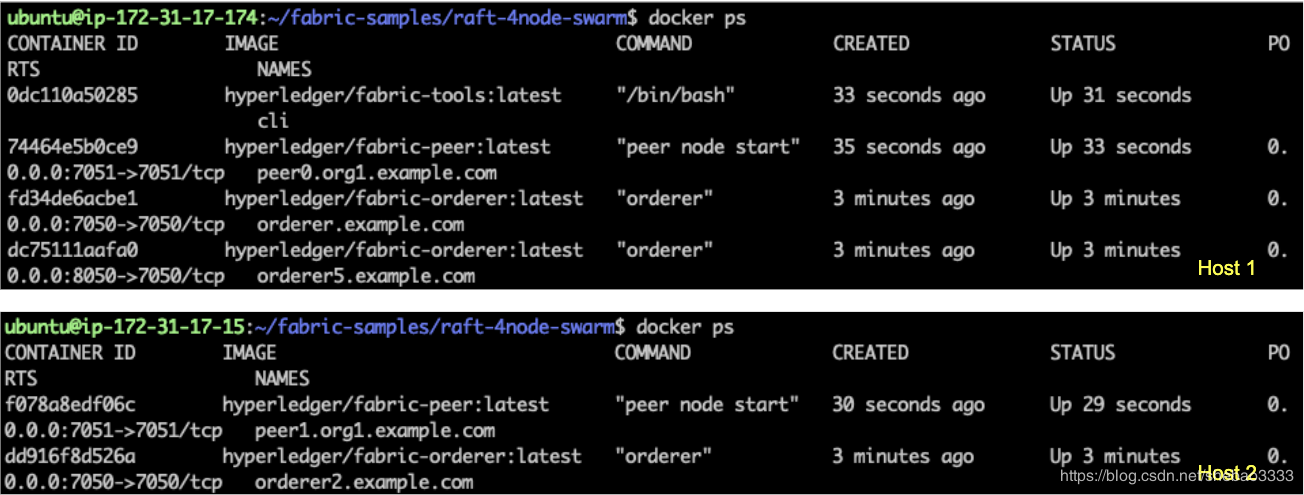

# on Host 1, 2, 3 and 4, bring up corresponding yaml filedocker-compose -f hostn.yaml up -d运行结果如下：
由于我们仅在host 1上由命令行CLI，因此从host 1的终端执行所有的命令。
为mychannel通道创建创世区块：
docker exec cli peer channel create -o orderer.example.com:7050 -c mychannel \ -f ./channel-artifacts/channel.tx --tls \ --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem将peer0.org1加入mychannel：
docker exec cli peer channel join -b mychannel.block将peer1.org1加入mychannel：
docker exec -e CORE_PEER_ADDRESS=peer1.org1.example.com:7051 \ -e CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt \ cli peer channel join -b mychannel.block将peer0.org2加入mychannel：
docker exec -e CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp \ -e CORE_PEER_ADDRESS=peer0.org2.example.com:7051 -e CORE_PEER_LOCALMSPID="Org2MSP" \ -e CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt \ cli peer channel join -b mychannel.block将peer1.org2 加入mychannel：
docker exec -e CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp \ -e CORE_PEER_ADDRESS=peer1.org2.example.com:7051 -e CORE_PEER_LOCALMSPID="Org2MSP" \ -e CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt \ cli peer channel join -b mychannel.block从host 1的终端将Fabcar链码安装到所有peer节点：
# to peer0.org1docker exec cli peer chaincode install -n mycc -v 1.0 -p github.com/chaincode/fabcar/go/# to peer1.org1docker exec -e CORE_PEER_ADDRESS=peer1.org1.example.com:7051 \ -e CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt \ cli peer chaincode install -n mycc -v 1.0 -p github.com/chaincode/fabcar/go/# to peer0.org2docker exec -e CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp \ -e CORE_PEER_ADDRESS=peer0.org2.example.com:7051 -e CORE_PEER_LOCALMSPID="Org2MSP" \ -e CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt \ cli peer chaincode install -n mycc -v 1.0 -p github.com/chaincode/fabcar/go/ # to peer1.org2docker exec -e CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp \ -e CORE_PEER_ADDRESS=peer1.org2.example.com:7051 -e CORE_PEER_LOCALMSPID="Org2MSP" \ -e CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt \ cli peer chaincode install -n mycc -v 1.0 -p github.com/chaincode/fabcar/go/在通道mychannle实例化Fabcar链码：
docker exec cli peer chaincode instantiate -o orderer.example.com:7050 --tls \ --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem \ -C mychannel -n mycc -v 1.0 -c '{"Args":[]}' -P "AND ('Org1MSP.peer','Org2MSP.peer')"首先调用initLedger方法将10个车辆记录载入账本。
在peer0.org1上执行：

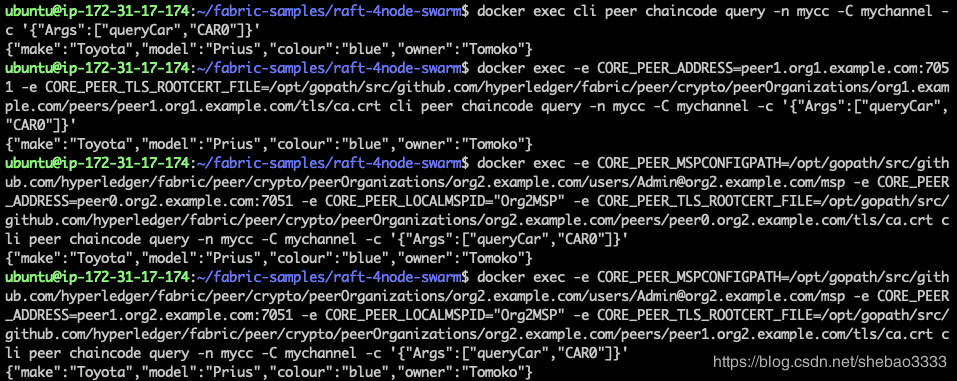

docker exec cli peer chaincode invoke -o orderer.example.com:7050 --tls true \ --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem \ -C mychannel -n mycc --peerAddresses peer0.org1.example.com:7051 \ --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt \ --peerAddresses peer0.org2.example.com:7051 \ --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt \ -c '{"Args":["initLedger"]}'现在可以从4个不同的peer节点查询车辆记录：
# from peer0.org1docker exec cli peer chaincode query -n mycc -C mychannel -c '{"Args":["queryCar","CAR0"]}'# from peer1.org1docker exec -e CORE_PEER_ADDRESS=peer1.org1.example.com:7051 \ -e CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer1.org1.example.com/tls/ca.crt \ cli peer chaincode query -n mycc -C mychannel -c '{"Args":["queryCar","CAR0"]}'# from peer0.org2docker exec -e CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp \ -e CORE_PEER_ADDRESS=peer0.org2.example.com:7051 -e CORE_PEER_LOCALMSPID="Org2MSP" \ -e CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt \ cli peer chaincode query -n mycc -C mychannel -c '{"Args":["queryCar","CAR0"]}'# from peer1.org2docker exec -e CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp \ -e CORE_PEER_ADDRESS=peer1.org2.example.com:7051 -e CORE_PEER_LOCALMSPID="Org2MSP" \ -e CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt \ cli peer chaincode query -n mycc -C mychannel -c '{"Args":["queryCar","CAR0"]}'运行结果如下：

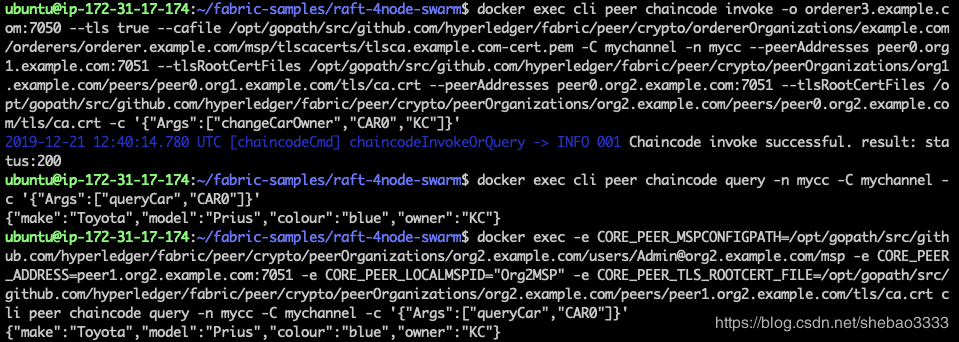

现在我们使用orderer3.example.com来调用 changeCarOwner，并在执行 后进行查询：
docker exec cli peer chaincode invoke -o orderer3.example.com:7050 --tls true \ --cafile /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem \ -C mychannel -n mycc --peerAddresses peer0.org1.example.com:7051 \ --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt \ --peerAddresses peer0.org2.example.com:7051 \ --tlsRootCertFiles /opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt \ -c '{"Args":["changeCarOwner","CAR0","KC"]}' # from peer0.org1docker exec cli peer chaincode query -n mycc -C mychannel -c '{"Args":["queryCar","CAR0"]}'# from peer1.org2docker exec -e CORE_PEER_MSPCONFIGPATH=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp \ -e CORE_PEER_ADDRESS=peer1.org2.example.com:7051 -e CORE_PEER_LOCALMSPID="Org2MSP" \ -e CORE_PEER_TLS_ROOTCERT_FILE=/opt/gopath/src/github.com/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer1.org2.example.com/tls/ca.crt \ cli peer chaincode query -n mycc -C mychannel -c '{"Args":["queryCar","CAR0"]}'运行结果如下：
你可以使用其他的orderer进行链码调用。由于这些排序节点构成了raft集群，你 应该得到同样的结果，这表示排序节点集群工作正常。
4.8 清理环境要清理运行环境，使用docker-compose将容器停掉并移除即可：
# each hostdocker-compose -f noden.yaml down -v在本教程中，我们基于BYFN示例进行修改，构建了一个基于Raft排序集群的 Hyperledger Fabric网络，使用Docker Swarm来实现多主机容器的通信。
