从0到1学习区块链-手动搭建部署Hyperledger Fabric区块链网络

摘要:九州通区块链,区块链部署必备工具熟悉Linux操作系统常用命令curl:下载Hyperledger Fabric相关的工具Git:使用Git下载官方例子代码Docker:Hyperledger Fabric运行在Docker容器内Docker-Componse:对Docker进行服务编排官方测试网络
必备工具熟悉Linux操作系统常用命令curl:下载Hyperledger Fabric相关的工具Git:使用Git下载官方例子代码Docker:Hyperledger Fabric运行在Docker容器内Docker-Componse:对Docker进行服务编排官方测试网络例子(版本v2.2):https://github.com/hyperledger/fabric-samples/tree/release-2.2Fabric相关工具介绍

从0到1学习区块链-手动搭建部署Hyperledger Fabric区块链网络

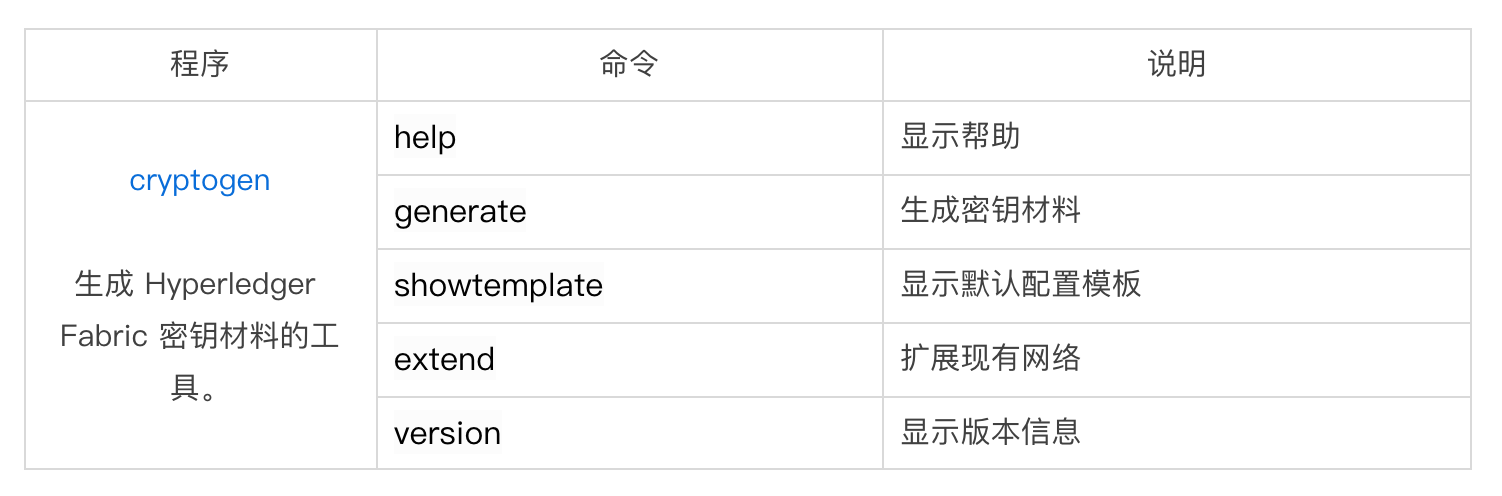

cryptogen

从0到1学习区块链-手动搭建部署Hyperledger Fabric区块链网络

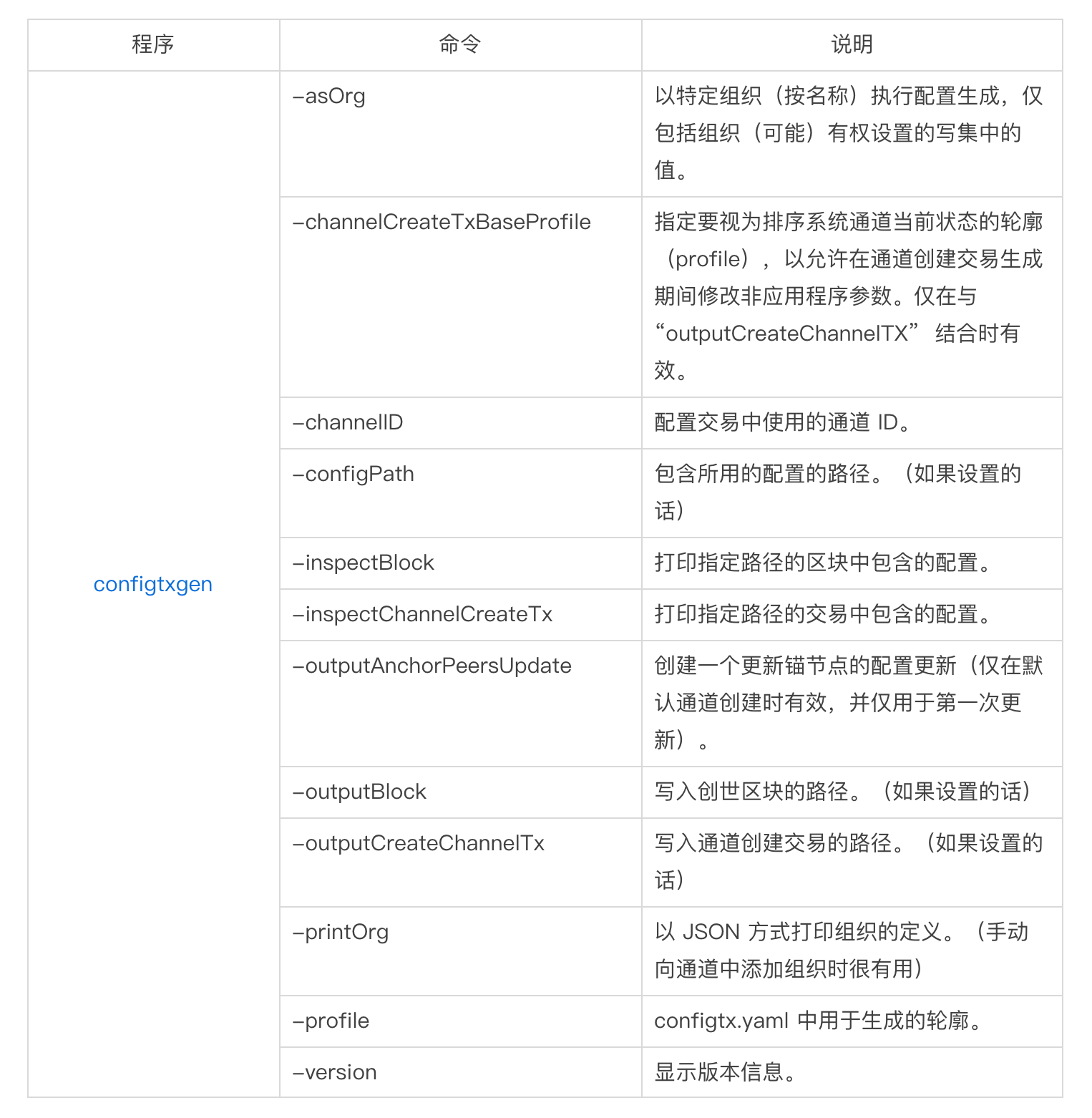

configtxgen

从0到1学习区块链-手动搭建部署Hyperledger Fabric区块链网络

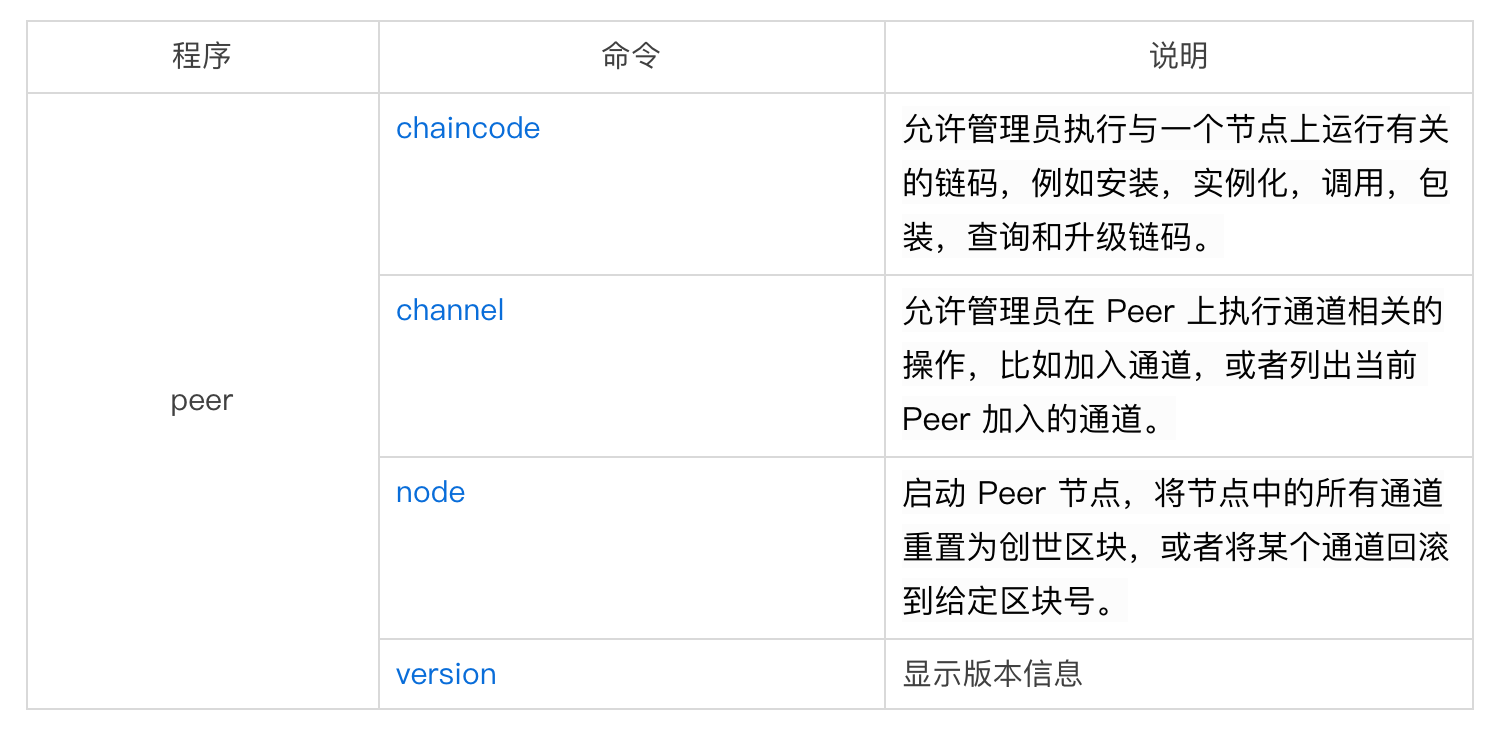

peer

创建通道配置

1. 创建文件夹并进入文件夹内操作,这里以frstfabric为例

make firstfabric && cd frstfabric

2. 使用cryptogen工具创建配置文件,根据默认配置模板创建crypto-config.yaml文件

cryptogen showtemplate > crypto-config.yaml

3. 修改生成的默认模板配置文件crypto-config.yaml中的配置项EnableNodeOUs: true

# ---------------------------------------------------------------------------# "OrdererOrgs" - 管理排序节点的组织定义# ---------------------------------------------------------------------------OrdererOrgs:   # ---------------------------------------------------------------------------  # Orderer 定义Orderer组织结构  # ---------------------------------------------------------------------------  - Name: Orderer # Orderer名称    Domain: example.com # 组织的域    EnableNodeOUs: true # 如果设置了EnableNodeOUs,就在msp下生成config.yaml文件    # ---------------------------------------------------------------------------    # "Specs" - 参见下面的PeerOrgs以获得完整的描述    # ---------------------------------------------------------------------------    Specs:      - Hostname: orderer# ---------------------------------------------------------------------------# "PeerOrgs" - 管理对等节点的组织定义# ---------------------------------------------------------------------------PeerOrgs:  # ---------------------------------------------------------------------------  # Org1 组织1  # ---------------------------------------------------------------------------  - Name: Org1 # 组织名称    Domain: org1.example.com # 组织域    EnableNodeOUs: true # 如果设置了EnableNodeOUs,就在msp下生成config.yaml文件    # ---------------------------------------------------------------------------    # "CA"    # ---------------------------------------------------------------------------# 取消注释此部分以启用此CA的显式定义# 组织。这个条目是一个规格,详细信息请参阅下面的“规格”部分。    # ---------------------------------------------------------------------------    # CA:    #    Hostname: ca # implicitly ca.org1.example.com    #    Country: US # 国家    #    Province: California # 省    #    Locality: San Francisco # 位置    #    OrganizationalUnit: Hyperledger Fabric # 组织    #    StreetAddress: address for org # default nil # 街道地址,可以为空    #    PostalCode: postalCode for org # default nil # 邮政编码,可以为空    # ---------------------------------------------------------------------------    # "Specs" 规格    # ---------------------------------------------------------------------------#取消注释此部分以启用显式定义的主机配置,大多数用户都想使用下面的模板    # Specs是Spec条目的数组。每个Spec条目包含两个字段:    #   - Hostname:   (必选)需要的主机名,没有域。    #   - CommonName: (可选)指定CN的模板或显式覆盖。    #                 默认情况下,这是模板:    #    #                              "{{.Hostname}}.{{.Domain}}"    ## 它分别从Spec.Hostname和Org获取其值和域。    #   - SANS:       (可选)指定要在结果x509中设置的一个或多个Subject Alternative Names。    #                 接受模板变量 {{.Hostname}}, {{.Domain}}, {{.CommonName}}。    #                 此处提供的IP地址将被正确识别。    #                 其他值将作为DNS名称。    #                 注意:为您创建了两个隐式条目:    #                     - {{ .CommonName }}    #                     - {{ .Hostname }}    # ---------------------------------------------------------------------------    # Specs:    #   - Hostname: foo # implicitly "foo.org1.example.com"    #     CommonName: foo27.org5.example.com # 覆盖上面设置的基于主机名的FQDN    #     SANS:    #       - "bar.{{.Domain}}"    #       - "altfoo.{{.Domain}}"    #       - "{{.Hostname}}.org6.net"    #       - 172.16.10.31    #   - Hostname: bar    #   - Hostname: baz    # ---------------------------------------------------------------------------    # "Template"    # ---------------------------------------------------------------------------    # 允许定义一个或多个从模板中顺序创建的主机。    # 默认情况下,这看起来像从0到Count-1的“peer%d”。    # 可以覆盖节点数(Count)、起始索引(Start)或用于构造名称(Hostname)的模板。    #    # 注意:模板和规格不是互斥的。    # 您可以定义这两个部分,聚合节点将为您创建。    # 注意名称冲突    # ---------------------------------------------------------------------------    Template:      Count: 1 # 表示生成几个Peer      # Start: 5      # Hostname: {{.Prefix}}{{.Index}} # default      # SANS:      #   - "{{.Hostname}}.alt.{{.Domain}}"    # ---------------------------------------------------------------------------    # "Users"    # ---------------------------------------------------------------------------    # Count: 除Admin外的用户帐号数;普通User    # ---------------------------------------------------------------------------    Users:      Count: 1  # ---------------------------------------------------------------------------  # Org2: 有关完整规范,请参考“Org1”  # ---------------------------------------------------------------------------  - Name: Org2    Domain: org2.example.com    EnableNodeOUs: true    Template:      Count: 1    Users:      Count: 1

4. 使用cryptogen工具指定修改后的配置crypto-config.yaml文件,生成密钥材料

cryptogen generate --config=crypto-config.yaml

5. 生成后,在当前项目的目录下会有一个新的crypto-config文件夹,里面包含了Orderer节点、Peer节点相关配置。

.├── ordererOrganizations│   └── example.com│       ├── ca│       │   ├── ca.example.com-cert.pem│       │   └── priv_sk│       ├── msp│       │   ├── admincerts│       │   ├── cacerts│       │   │   └── ca.example.com-cert.pem│       │   ├── config.yaml│       │   └── tlscacerts│       │       └── tlsca.example.com-cert.pem│       ├── orderers│       │   └── orderer.example.com│       │       ├── msp│       │       │   ├── admincerts│       │       │   ├── cacerts│       │       │   │   └── ca.example.com-cert.pem│       │       │   ├── config.yaml│       │       │   ├── keystore│       │       │   │   └── priv_sk│       │       │   ├── signcerts│       │       │   │   └── orderer.example.com-cert.pem│       │       │   └── tlscacerts│       │       │       └── tlsca.example.com-cert.pem│       │       └── tls│       │           ├── ca.crt│       │           ├── server.crt│       │           └── server.key│       ├── tlsca│       │   ├── priv_sk│       │   └── tlsca.example.com-cert.pem│       └── users│           └── Admin@example.com│               ├── msp│               │   ├── admincerts│               │   ├── cacerts│               │   │   └── ca.example.com-cert.pem│               │   ├── config.yaml│               │   ├── keystore│               │   │   └── priv_sk│               │   ├── signcerts│               │   │   └── Admin@example.com-cert.pem│               │   └── tlscacerts│               │       └── tlsca.example.com-cert.pem│               └── tls│                   ├── ca.crt│                   ├── client.crt│                   └── client.key└── peerOrganizations    ├── org1.example.com    │   ├── ca    │   │   ├── ca.org1.example.com-cert.pem    │   │   └── priv_sk    │   ├── msp    │   │   ├── admincerts    │   │   ├── cacerts    │   │   │   └── ca.org1.example.com-cert.pem    │   │   ├── config.yaml    │   │   └── tlscacerts    │   │       └── tlsca.org1.example.com-cert.pem    │   ├── peers    │   │   └── peer0.org1.example.com    │   │       ├── msp    │   │       │   ├── admincerts    │   │       │   ├── cacerts    │   │       │   │   └── ca.org1.example.com-cert.pem    │   │       │   ├── config.yaml    │   │       │   ├── keystore    │   │       │   │   └── priv_sk    │   │       │   ├── signcerts    │   │       │   │   └── peer0.org1.example.com-cert.pem    │   │       │   └── tlscacerts    │   │       │       └── tlsca.org1.example.com-cert.pem    │   │       └── tls    │   │           ├── ca.crt    │   │           ├── server.crt    │   │           └── server.key    │   ├── tlsca    │   │   ├── priv_sk    │   │   └── tlsca.org1.example.com-cert.pem    │   └── users    │       ├── Admin@org1.example.com    │       │   ├── msp    │       │   │   ├── admincerts    │       │   │   ├── cacerts    │       │   │   │   └── ca.org1.example.com-cert.pem    │       │   │   ├── config.yaml    │       │   │   ├── keystore    │       │   │   │   └── priv_sk    │       │   │   ├── signcerts    │       │   │   │   └── Admin@org1.example.com-cert.pem    │       │   │   └── tlscacerts    │       │   │       └── tlsca.org1.example.com-cert.pem    │       │   └── tls    │       │       ├── ca.crt    │       │       ├── client.crt    │       │       └── client.key    │       └── User1@org1.example.com    │           ├── msp    │           │   ├── admincerts    │           │   ├── cacerts    │           │   │   └── ca.org1.example.com-cert.pem    │           │   ├── config.yaml    │           │   ├── keystore    │           │   │   └── priv_sk    │           │   ├── signcerts    │           │   │   └── User1@org1.example.com-cert.pem    │           │   └── tlscacerts    │           │       └── tlsca.org1.example.com-cert.pem    │           └── tls    │               ├── ca.crt    │               ├── client.crt    │               └── client.key    └── org2.example.com        ├── ca        │   ├── ca.org2.example.com-cert.pem        │   └── priv_sk        ├── msp        │   ├── admincerts        │   ├── cacerts        │   │   └── ca.org2.example.com-cert.pem        │   ├── config.yaml        │   └── tlscacerts        │       └── tlsca.org2.example.com-cert.pem        ├── peers        │   └── peer0.org2.example.com        │       ├── msp        │       │   ├── admincerts        │       │   ├── cacerts        │       │   │   └── ca.org2.example.com-cert.pem        │       │   ├── config.yaml        │       │   ├── keystore        │       │   │   └── priv_sk        │       │   ├── signcerts        │       │   │   └── peer0.org2.example.com-cert.pem        │       │   └── tlscacerts        │       │       └── tlsca.org2.example.com-cert.pem        │       └── tls        │           ├── ca.crt        │           ├── server.crt        │           └── server.key        ├── tlsca        │   ├── priv_sk        │   └── tlsca.org2.example.com-cert.pem        └── users            ├── Admin@org2.example.com            │   ├── msp            │   │   ├── admincerts            │   │   ├── cacerts            │   │   │   └── ca.org2.example.com-cert.pem            │   │   ├── config.yaml            │   │   ├── keystore            │   │   │   └── priv_sk            │   │   ├── signcerts            │   │   │   └── Admin@org2.example.com-cert.pem            │   │   └── tlscacerts            │   │       └── tlsca.org2.example.com-cert.pem            │   └── tls            │       ├── ca.crt            │       ├── client.crt            │       └── client.key            └── User1@org2.example.com                ├── msp                │   ├── admincerts                │   ├── cacerts                │   │   └── ca.org2.example.com-cert.pem                │   ├── config.yaml                │   ├── keystore                │   │   └── priv_sk                │   ├── signcerts                │   │   └── User1@org2.example.com-cert.pem                │   └── tlscacerts                │       └── tlsca.org2.example.com-cert.pem                └── tls                    ├── ca.crt                    ├── client.crt                    └── client.key93 directories, 85 files
配置组织相关文件

1. 打开测试网络测试配置文件(https://github.com/hyperledger/fabric-samples/blob/release-2.2/test-network/configtx/configtx.yaml)

2. 把配置文件下载到本地(configtx.yaml)

3. 修改配置文件(configtx.yaml)中的所有MSP相关的配置路径

# 修改前Organizations:    - &OrdererOrg        MSPDir: ../organizations/ordererOrganizations/example.com/msp    - &Org1        MSPDir: ../organizations/peerOrganizations/org1.example.com/msp    - &Org2        MSPDir: ../organizations/peerOrganizations/org2.example.com/msp
# 修改后Organizations:    - &OrdererOrg        MSPDir: crypto-config/ordererOrganizations/example.com/msp    - &Org1        MSPDir: crypto-config/peerOrganizations/org1.example.com/msp    - &Org2        MSPDir: crypto-config/peerOrganizations/org2.example.com/msp

4. 修改配置文件(configtx.yaml)中的所有Raft证书相关的配置路径

# 修改前Orderer: &OrdererDefaults    OrdererType: etcdraft    Addresses:        - orderer.example.com:7050    EtcdRaft:        Consenters:        - Host: orderer.example.com          Port: 7050          ClientTLSCert: ../organizations/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt          ServerTLSCert: ../organizations/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt
# 修改后Orderer: &OrdererDefaults    OrdererType: etcdraft    Addresses:        - orderer.example.com:7050    EtcdRaft:        Consenters:        - Host: orderer.example.com          Port: 7050          ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt          ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt

5. 修改配置文件(configtx.yaml)分别在Org1和Org2下面添加,如果不添加将会出现错误:

Error on inspectChannelCreateTx: org 'Org1MSP' does not have any anchor peers defined

AnchorPeers:- Host: peer0.org1.example.comPort: 7051---AnchorPeers:- Host: peer0.org2.example.comPort: 9051
# 添加后Organizations:    - &Org1        AnchorPeers:            - Host: peer0.org1.example.com              Port: 7051    - &Org2        AnchorPeers:            - Host: peer0.org2.example.com              Port: 9051

6. 配置后的完整configtx.yaml文件

Organizations:    - &OrdererOrg        Name: OrdererOrg        ID: OrdererMSP        # 修改        MSPDir: crypto-config/ordererOrganizations/example.com/msp        Policies:            Readers:                Type: Signature                Rule: "OR('OrdererMSP.member')"            Writers:                Type: Signature                Rule: "OR('OrdererMSP.member')"            Admins:                Type: Signature                Rule: "OR('OrdererMSP.admin')"        OrdererEndpoints:            - orderer.example.com:7050    - &Org1        Name: Org1MSP        ID: Org1MSP        # 修改        MSPDir: crypto-config/peerOrganizations/org1.example.com/msp        Policies:            Readers:                Type: Signature                Rule: "OR('Org1MSP.admin', 'Org1MSP.peer', 'Org1MSP.client')"            Writers:                Type: Signature                Rule: "OR('Org1MSP.admin', 'Org1MSP.client')"            Admins:                Type: Signature                Rule: "OR('Org1MSP.admin')"            Endorsement:                Type: Signature                Rule: "OR('Org1MSP.peer')"# 新添加        AnchorPeers:            - Host: peer0.org1.example.com              Port: 7051    - &Org2        Name: Org2MSP        ID: Org2MSP        # 修改        MSPDir: crypto-config/peerOrganizations/org2.example.com/msp        Policies:            Readers:                Type: Signature                Rule: "OR('Org2MSP.admin', 'Org2MSP.peer', 'Org2MSP.client')"            Writers:                Type: Signature                Rule: "OR('Org2MSP.admin', 'Org2MSP.client')"            Admins:                Type: Signature                Rule: "OR('Org2MSP.admin')"            Endorsement:                Type: Signature                Rule: "OR('Org2MSP.peer')"# 新添加        AnchorPeers:            - Host: peer0.org2.example.com              Port: 9051Capabilities:    Channel: &ChannelCapabilities        V2_0: true    Orderer: &OrdererCapabilities        V2_0: true    Application: &ApplicationCapabilities        V2_0: trueApplication: &ApplicationDefaults    Organizations:    Policies:        Readers:            Type: ImplicitMeta            Rule: "ANY Readers"        Writers:            Type: ImplicitMeta            Rule: "ANY Writers"        Admins:            Type: ImplicitMeta            Rule: "MAJORITY Admins"        LifecycleEndorsement:            Type: ImplicitMeta            Rule: "MAJORITY Endorsement"        Endorsement:            Type: ImplicitMeta            Rule: "MAJORITY Endorsement"    Capabilities:        <<: *ApplicationCapabilitiesOrderer: &OrdererDefaults    OrdererType: etcdraft    Addresses:        - orderer.example.com:7050# 修改ClientTLSCert,ServerTLSCert    EtcdRaft:        Consenters:        - Host: orderer.example.com          Port: 7050          ClientTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt          ServerTLSCert: crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/server.crt    BatchTimeout: 2s    BatchSize:        MaxMessageCount: 10        AbsoluteMaxBytes: 99 MB        PreferredMaxBytes: 512 KB    Organizations:    Policies:        Readers:            Type: ImplicitMeta            Rule: "ANY Readers"        Writers:            Type: ImplicitMeta            Rule: "ANY Writers"        Admins:            Type: ImplicitMeta            Rule: "MAJORITY Admins"        BlockValidation:            Type: ImplicitMeta            Rule: "ANY Writers"Channel: &ChannelDefaults    Policies:        Readers:            Type: ImplicitMeta            Rule: "ANY Readers"        Writers:            Type: ImplicitMeta            Rule: "ANY Writers"        Admins:            Type: ImplicitMeta            Rule: "MAJORITY Admins"    Capabilities:        <<: *ChannelCapabilitiesProfiles:    TwoOrgsOrdererGenesis:        <<: *ChannelDefaults        Orderer:            <<: *OrdererDefaults            Organizations:                - *OrdererOrg            Capabilities:                <<: *OrdererCapabilities        Consortiums:            SampleConsortium:                Organizations:                    - *Org1                    - *Org2    TwoOrgsChannel:        Consortium: SampleConsortium        <<: *ChannelDefaults        Application:            <<: *ApplicationDefaults            Organizations:                - *Org1                - *Org2            Capabilities:                <<: *ApplicationCapabilities
生成创世区块、通道、锚节点相关文件

1. 使用configtxgen工具生成创世块文件;生成创世块的ChannelID要与后面的不同

configtxgen -profile TwoOrgsOrdererGenesis \-outputBlock ./channel-artifacts/genesis.block \-channelID fabric-channel

2. 使用configtxgen工具生成通道文件

configtxgen -profile TwoOrgsChannel \-outputCreateChannelTx ./channel-artifacts/channel.tx \-channelID mychannel

3. 使用configtxgen工具生成相关组织的锚节点文件;创建一个更新锚节点的配置更新(仅在默认通道创建时有效,并仅用于第一次更新)

# 生成组织1锚节点文件configtxgen -profile TwoOrgsChannel \-outputAnchorPeersUpdate ./channel-artifacts/org1MSPanchors.tx \-channelID mychannel -asOrg Org1MSP# 生成组织2锚节点文件configtxgen -profile TwoOrgsChannel \-outputAnchorPeersUpdate ./channel-artifacts/org2MSPanchors.tx \-channelID mychannel -asOrg Org2MSP
配置并创建peer节点

1. 打开测试网络docker-compose-test-net.yaml文件(https://github.com/hyperledger/fabric-samples/blob/release-2.2/test-network/docker/docker-compose-test-net.yaml)

2. 把配置文件下载到本地(docker-compose-test-net.yaml)改名为docker-compose.yaml

3. 修改配置文件(docker-compose.yaml)中image的tag(版本号为:2.2)

# 修改前image: hyperledger/fabric-orderer:latestimage: hyperledger/fabric-peer:latestimage: hyperledger/fabric-tools:latest# 修改后image: hyperledger/fabric-orderer:2.2image: hyperledger/fabric-peer:2.2image: hyperledger/fabric-tools:2.2修改配置文件(docker-compose.yaml)中networks中的名称

4. 修改配置文件(docker-compose.yaml)中networks中的名称

# 修改前networks:  test:    name: fabric_test---peer0.org1.example.com:environment:- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=fabric_test---peer0.org2.example.com:environment:- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=fabric_test
# 修改后networks:  test:    name: firstfabric_test---peer0.org1.example.com:environment:- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=firstfabric_test---peer0.org2.example.com:environment:- CORE_VM_DOCKER_HOSTCONFIG_NETWORKMODE=firstfabric_test

5. 修改配置文件(docker-compose.yaml)中volumes中的映射地址

修改前services:  orderer.example.com:    volumes:        - ../system-genesis-block/genesis.block:/var/hyperledger/orderer/orderer.genesis.block        - ../organizations/ordererOrganizations/example.com/orderers/orderer.example.com/msp:/var/hyperledger/orderer/msp        - ../organizations/ordererOrganizations/example.com/orderers/orderer.example.com/tls/:/var/hyperledger/orderer/tls        - orderer.example.com:/var/hyperledger/production/orderer  peer0.org1.example.com:    volumes:        - /var/run/docker.sock:/host/var/run/docker.sock        - ../organizations/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp:/etc/hyperledger/fabric/msp        - ../organizations/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls:/etc/hyperledger/fabric/tls        - peer0.org1.example.com:/var/hyperledger/production  peer0.org2.example.com:    volumes:        - /var/run/docker.sock:/host/var/run/docker.sock        - ../organizations/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp:/etc/hyperledger/fabric/msp        - ../organizations/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls:/etc/hyperledger/fabric/tls        - peer0.org2.example.com:/var/hyperledger/production
# 修改后services:  orderer.example.com:    volumes:        - ./channel-artifacts/genesis.block:/var/hyperledger/orderer/orderer.genesis.block        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/msp:/var/hyperledger/orderer/msp        - ./crypto-config/ordererOrganizations/example.com/orderers/orderer.example.com/tls/:/var/hyperledger/orderer/tls        - orderer.example.com:/var/hyperledger/production/orderer  peer0.org1.example.com:    volumes:        - /var/run/docker.sock:/host/var/run/docker.sock        - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/msp:/etc/hyperledger/fabric/msp        - ./crypto-config/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls:/etc/hyperledger/fabric/tls        - peer0.org1.example.com:/var/hyperledger/production  peer0.org2.example.com:    volumes:        - /var/run/docker.sock:/host/var/run/docker.sock        - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/msp:/etc/hyperledger/fabric/msp        - ./crypto-config/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls:/etc/hyperledger/fabric/tls        - peer0.org2.example.com:/var/hyperledger/production

6. 修改配置文件(docker-compose.yaml)中cli,为每个Org创建一个对应的cli,并对本地目录映射org1的管理节点:cli1org2的管理节点:cli2

# 修改前cli:    container_name: cli    image: hyperledger/fabric-tools:latest    tty: true    stdin_open: true    environment:      - GOPATH=/opt/gopath      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock      - FABRIC_LOGGING_SPEC=INFO      #- FABRIC_LOGGING_SPEC=DEBUG    working_dir: /opt/gopath/src/github.com/hyperledger/fabric/peer    command: /bin/bash    volumes:        - /var/run/:/host/var/run/        - ../organizations:/opt/gopath/src/github.com/hyperledger/fabric/peer/organizations        - ../scripts:/opt/gopath/src/github.com/hyperledger/fabric/peer/scripts/    depends_on:      - peer0.org1.example.com      - peer0.org2.example.com    networks:      - test
# 修改后  cli1:    container_name: cli1    image: hyperledger/fabric-tools:2.2    tty: true    stdin_open: true    environment:      - GOPATH=/opt/gopath      - GOPROXY=https://goproxy.io,direct      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock      - FABRIC_LOGGING_SPEC=INFO      #- FABRIC_LOGGING_SPEC=DEBUG      # 启用对服务端的TLS身份验证      - CORE_PEER_TLS_ENABLED=true      # Peer节点的X.509证书文件路径      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.crt      # Peer节点的私钥文件路径      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/server.key      # Peer节点证书的验证链根证书文件路径      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt      # Peer节点的本地MSP配置文件的路径      - CORE_PEER_MSPCONFIGPATH=/etc/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/users/Admin@org1.example.com/msp      # Peer节点ID      - CORE_PEER_ID=cli1      # Peer节点连接地址      - CORE_PEER_ADDRESS=peer0.org1.example.com:7051      # 本地MSP标识ID      - CORE_PEER_LOCALMSPID=Org1MSP    working_dir: /opt/hyperledger/fabric    command: /bin/bash    volumes:        - /var/run/:/host/var/run/        - ./crypto-config:/etc/hyperledger/fabric/peer/crypto        - ./channel-artifacts:/opt/hyperledger/fabric/channel-artifacts        - ./chaincode/:/opt/hyperledger/fabric/chaincode    depends_on:      - peer0.org1.example.com      - peer0.org2.example.com    networks:      - test  cli2:    container_name: cli2    image: hyperledger/fabric-tools:2.2    tty: true    stdin_open: true    environment:      - GOPATH=/opt/gopath      - GOPROXY=https://goproxy.io,direct      - CORE_VM_ENDPOINT=unix:///host/var/run/docker.sock      - FABRIC_LOGGING_SPEC=INFO      #- FABRIC_LOGGING_SPEC=DEBUG      # 启用对服务端的TLS身份验证      - CORE_PEER_TLS_ENABLED=true      # Peer节点的X.509证书文件路径      - CORE_PEER_TLS_CERT_FILE=/etc/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.crt      # Peer节点的私钥文件路径      - CORE_PEER_TLS_KEY_FILE=/etc/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/server.key      # Peer节点证书的验证链根证书文件路径      - CORE_PEER_TLS_ROOTCERT_FILE=/etc/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt      # Peer节点的本地MSP配置文件的路径      - CORE_PEER_MSPCONFIGPATH=/etc/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/users/Admin@org2.example.com/msp      # Peer节点ID      - CORE_PEER_ID=cli2      # Peer节点连接地址      - CORE_PEER_ADDRESS=peer0.org2.example.com:9051      # 本地MSP标识ID      - CORE_PEER_LOCALMSPID=Org2MSP    working_dir: /opt/hyperledger/fabric    command: /bin/bash    volumes:        - /var/run/:/host/var/run/        - ./crypto-config:/etc/hyperledger/fabric/peer/crypto        - ./channel-artifacts:/opt/hyperledger/fabric/channel-artifacts        - ./chaincode/:/opt/hyperledger/fabric/chaincode    depends_on:      - peer0.org1.example.com      - peer0.org2.example.com    networks:      - test

7. 运行修改后的docker-compose

docker-compose up -d

8. 运行命令查看运行结果

docker ps -a
分别在cli1和cli2中操作Channel

使用命令docker exec -it cli1 /bin/bash、docker exec -it cli2 /bin/bash分别进入相关组织的管理节点

1. 使用peer channel create命令在cli1创建Channel并生成Channel的Block文件

peer channel create \-o orderer.example.com:7050 \-f ./channel-artifacts/channel.tx \-c mychannel \--outputBlock ./channel-artifacts/mychannel.block \--tls true \--cafile /etc/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/msp/tlscacerts/tlsca.example.com-cert.pem

2. 使用peer channel join命令分别对cli1和cli2加入Channel

# 在cli1加入Channelpeer channel join -b ./channel-artifacts/mychannel.block# 把cli2加入Channelpeer channel join -b ./channel-artifacts/mychannel.block

3. 使用peer channel update命令分别对cli1和cli2更新锚节点文件

# cli1peer channel update \-o orderer.example.com:7050 \-c mychannel \-f ./channel-artifacts/Org1MSPanchors.tx \--tls true \--cafile /etc/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem# cli2peer channel update \-o orderer.example.com:7050 \-c mychannel \-f ./channel-artifacts/Org2MSPanchors.tx \--tls true \--cafile /etc/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem
打包、安装、批准、提交链码

1. 创建链码目录:在本地创建chaincode目录,结构如下:

mkdir -p chaincode/gomkdir -p chaincode/output# 文件夹结构.├── go└── output

2. 下载链码:打开测试网络中的sacc文件(https://github.com/hyperledger/fabric-samples/tree/release-2.2/chaincode/sacc);把里面的sacc.go复制到chaincode/go/sacc/目录下

3. 为项目生成modules

cd chaincode/go/sacc# 初始化modules相关文件go mod init sacc# 更新项目所使用的包go mod tidy

4. 打包链码:使用peer lifecycle chaincode package命令打包链码并指定输出的文件名和label;这一步可以被一个或者每一个组织完成,可以在cli1或者cli2中打包链码

# 跳转到链码所在容器内的位置cd /opt/hyperledger/fabric/chaincode/go/sacc# 更新链码项目所使用的包go mod tidy# 对链码进行打包peer lifecycle chaincode package ./chaincode/output/sacc.tar.gz \--path /opt/hyperledger/fabric/chaincode/go/sacc \--label sacc_1

5. 安装链码在你的peer节点上:使用peer lifecycle chaincode install命令安装链码,每一个用链码的组织需要完成这一步。分别在cli1和cli2中给对应的peer节点安装链码,并复制保存生成的Package-ID

# 在cli1中给对应的peer节点安装链码peer lifecycle chaincode install ./chaincode/output/sacc.tar.gzsubmitInstallProposal -> INFO 002 Chaincode code package identifier: sacc_1:abf526549b6cd9639d4449f58aca40041882c34e8a3e314493189fc3a2187527 # 在cli2中给对应的peer节点安装链码peer lifecycle chaincode install ./chaincode/output/sacc.tar.gzsubmitInstallProposal -> INFO 002 Chaincode code package identifier: sacc_1:abf526549b6cd9639d4449f58aca40041882c34e8a3e314493189fc3a2187527

6. 为你的组织批准链码定义:使用peer lifecycle chaincode approveformyorg命令批准链码;使用链码的每一个组织需要完成这一步。在cli1和cli2中为你的组织批准链码定义

# cli1peer lifecycle chaincode approveformyorg \--orderer orderer.example.com:7050 \--channelID mychannel \--name sacc \--version 1.0 \--init-required \--package-id <这里需要填入安装链码生成的Package-ID> \--sequence 1 \--tls true \--cafile /etc/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem# cli2peer lifecycle chaincode approveformyorg \--orderer orderer.example.com:7050 \--channelID mychannel \--name sacc \--version 1.0 \--init-required \--package-id <这里需要填入安装链码生成的Package-ID> \--sequence 1 \--tls true \--cafile /etc/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem

7. 检查链码是否批准:使用命令peer lifecycle chaincode checkcommitreadiness检查各个组织中的peer节点是否批准链码;可以在任意cli中运行

peer lifecycle chaincode checkcommitreadiness \--orderer orderer.example.com:7050 \--channelID mychannel \--name sacc \--version 1.0 \--init-required \--sequence 1 \--tls true \--cafile /etc/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem \--output json# 结果如下代表两个组织都批准成功{"approvals": {"Org1MSP": true,"Org2MSP": true}}

8. 提交链码定义到链上:使用peer lifecycle chaincode commit命令为所有组织提交链码;一旦有足够数量的组织批准其组织的链码定义(默认为多数),一个组织可以为已批准组织的peer节点的提交链码定义到连上。可以在任意cli中运行

peer lifecycle chaincode commit \--orderer orderer.example.com:7050 \--channelID mychannel \--name sacc \--version 1.0 \--sequence 1 \--init-required \--tls true \--cafile /etc/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem \--peerAddresses peer0.org1.example.com:7051 \--tlsRootCertFiles /etc/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt \--peerAddresses peer0.org2.example.com:9051 \--tlsRootCertFiles /etc/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt
初始化和测试链码是否安装成功

1. 使用命令peer chaincode invoke --isInit对变量进行赋值并初始化链码

# 调用版本1.0名为sacc的链码,# 该链码位于peer0.org1.example.com:7051和peer0.org2.example.com:9051#(节点由 –peerAddresses 上的通道mychannel中,添加变量name并赋值为德意洋洋)peer chaincode invoke \--orderer orderer.example.com:7050 \--isInit \--ordererTLSHostnameOverride orderer.example.com \--tls true \--cafile /etc/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem \--peerAddresses peer0.org1.example.com:7051 \--tlsRootCertFiles /etc/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt \--peerAddresses peer0.org2.example.com:9051 \--tlsRootCertFiles /etc/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt \--channelID mychannel \--name sacc \-c '{"Args":["name","德意洋洋"]}'

2. 使用命令peer chaincode query对变量进行查询检查是否赋值成功

peer chaincode query --channelID mychannel --name sacc -c '{"Args":["query","name"]}'# 结果德意洋洋

3. 使用命令peer chaincode invoke对变量进行修改

peer chaincode invoke \--orderer orderer.example.com:7050 \--tls true \--cafile /etc/hyperledger/fabric/peer/crypto/ordererOrganizations/example.com/orderers/orderer.example.com/msp/tlscacerts/tlsca.example.com-cert.pem \--peerAddresses peer0.org1.example.com:7051 \--tlsRootCertFiles /etc/hyperledger/fabric/peer/crypto/peerOrganizations/org1.example.com/peers/peer0.org1.example.com/tls/ca.crt \--peerAddresses peer0.org2.example.com:9051 \--tlsRootCertFiles /etc/hyperledger/fabric/peer/crypto/peerOrganizations/org2.example.com/peers/peer0.org2.example.com/tls/ca.crt \--channelID mychannel \--name sacc \-c '{"Args":["set","name","德意洋洋牛逼"]}'

4. 使用命令peer chaincode query对变量进行查询检查是否修改成功

peer chaincode query --channelID mychannel --name sacc -c '{"Args":["query","name"]}'# 结果德意洋洋牛逼
项目整体目录结构
.├── chaincode│   ├── go│   │   └── sacc│   │       ├── go.mod│   │       ├── go.sum│   │       ├── sacc.go│   │       └── sacc_test.go│   └── output│       ├── sacc.tar.gz├── channel-artifacts│   ├── channel.tx│   ├── genesis.block│   ├── mychannel.block│   ├── org1MSPanchors.tx│   └── org2MSPanchors.tx├── configtx.yaml├── crypto-config│   ├── ordererOrganizations│   │   └── example.com│   │       ├── ca│   │       │   ├── ca.example.com-cert.pem│   │       │   └── priv_sk│   │       ├── msp│   │       │   ├── admincerts│   │       │   ├── cacerts│   │       │   │   └── ca.example.com-cert.pem│   │       │   ├── config.yaml│   │       │   └── tlscacerts│   │       │       └── tlsca.example.com-cert.pem│   │       ├── orderers│   │       │   └── orderer.example.com│   │       │       ├── msp│   │       │       │   ├── admincerts│   │       │       │   ├── cacerts│   │       │       │   │   └── ca.example.com-cert.pem│   │       │       │   ├── config.yaml│   │       │       │   ├── keystore│   │       │       │   │   └── priv_sk│   │       │       │   ├── signcerts│   │       │       │   │   └── orderer.example.com-cert.pem│   │       │       │   └── tlscacerts│   │       │       │       └── tlsca.example.com-cert.pem│   │       │       └── tls│   │       │           ├── ca.crt│   │       │           ├── server.crt│   │       │           └── server.key│   │       ├── tlsca│   │       │   ├── priv_sk│   │       │   └── tlsca.example.com-cert.pem│   │       └── users│   │           └── Admin@example.com│   │               ├── msp│   │               │   ├── admincerts│   │               │   ├── cacerts│   │               │   │   └── ca.example.com-cert.pem│   │               │   ├── config.yaml│   │               │   ├── keystore│   │               │   │   └── priv_sk│   │               │   ├── signcerts│   │               │   │   └── Admin@example.com-cert.pem│   │               │   └── tlscacerts│   │               │       └── tlsca.example.com-cert.pem│   │               └── tls│   │                   ├── ca.crt│   │                   ├── client.crt│   │                   └── client.key│   └── peerOrganizations│       ├── org1.example.com│       │   ├── ca│       │   │   ├── ca.org1.example.com-cert.pem│       │   │   └── priv_sk│       │   ├── msp│       │   │   ├── admincerts│       │   │   ├── cacerts│       │   │   │   └── ca.org1.example.com-cert.pem│       │   │   ├── config.yaml│       │   │   └── tlscacerts│       │   │       └── tlsca.org1.example.com-cert.pem│       │   ├── peers│       │   │   └── peer0.org1.example.com│       │   │       ├── msp│       │   │       │   ├── admincerts│       │   │       │   ├── cacerts│       │   │       │   │   └── ca.org1.example.com-cert.pem│       │   │       │   ├── config.yaml│       │   │       │   ├── keystore│       │   │       │   │   └── priv_sk│       │   │       │   ├── signcerts│       │   │       │   │   └── peer0.org1.example.com-cert.pem│       │   │       │   └── tlscacerts│       │   │       │       └── tlsca.org1.example.com-cert.pem│       │   │       └── tls│       │   │           ├── ca.crt│       │   │           ├── server.crt│       │   │           └── server.key│       │   ├── tlsca│       │   │   ├── priv_sk│       │   │   └── tlsca.org1.example.com-cert.pem│       │   └── users│       │       ├── Admin@org1.example.com│       │       │   ├── msp│       │       │   │   ├── admincerts│       │       │   │   ├── cacerts│       │       │   │   │   └── ca.org1.example.com-cert.pem│       │       │   │   ├── config.yaml│       │       │   │   ├── keystore│       │       │   │   │   └── priv_sk│       │       │   │   ├── signcerts│       │       │   │   │   └── Admin@org1.example.com-cert.pem│       │       │   │   └── tlscacerts│       │       │   │       └── tlsca.org1.example.com-cert.pem│       │       │   └── tls│       │       │       ├── ca.crt│       │       │       ├── client.crt│       │       │       └── client.key│       │       └── User1@org1.example.com│       │           ├── msp│       │           │   ├── admincerts│       │           │   ├── cacerts│       │           │   │   └── ca.org1.example.com-cert.pem│       │           │   ├── config.yaml│       │           │   ├── keystore│       │           │   │   └── priv_sk│       │           │   ├── signcerts│       │           │   │   └── User1@org1.example.com-cert.pem│       │           │   └── tlscacerts│       │           │       └── tlsca.org1.example.com-cert.pem│       │           └── tls│       │               ├── ca.crt│       │               ├── client.crt│       │               └── client.key│       └── org2.example.com│           ├── ca│           │   ├── ca.org2.example.com-cert.pem│           │   └── priv_sk│           ├── msp│           │   ├── admincerts│           │   ├── cacerts│           │   │   └── ca.org2.example.com-cert.pem│           │   ├── config.yaml│           │   └── tlscacerts│           │       └── tlsca.org2.example.com-cert.pem│           ├── peers│           │   └── peer0.org2.example.com│           │       ├── msp│           │       │   ├── admincerts│           │       │   ├── cacerts│           │       │   │   └── ca.org2.example.com-cert.pem│           │       │   ├── config.yaml│           │       │   ├── keystore│           │       │   │   └── priv_sk│           │       │   ├── signcerts│           │       │   │   └── peer0.org2.example.com-cert.pem│           │       │   └── tlscacerts│           │       │       └── tlsca.org2.example.com-cert.pem│           │       └── tls│           │           ├── ca.crt│           │           ├── server.crt│           │           └── server.key│           ├── tlsca│           │   ├── priv_sk│           │   └── tlsca.org2.example.com-cert.pem│           └── users│               ├── Admin@org2.example.com│               │   ├── msp│               │   │   ├── admincerts│               │   │   ├── cacerts│               │   │   │   └── ca.org2.example.com-cert.pem│               │   │   ├── config.yaml│               │   │   ├── keystore│               │   │   │   └── priv_sk│               │   │   ├── signcerts│               │   │   │   └── Admin@org2.example.com-cert.pem│               │   │   └── tlscacerts│               │   │       └── tlsca.org2.example.com-cert.pem│               │   └── tls│               │       ├── ca.crt│               │       ├── client.crt│               │       └── client.key│               └── User1@org2.example.com│                   ├── msp│                   │   ├── admincerts│                   │   ├── cacerts│                   │   │   └── ca.org2.example.com-cert.pem│                   │   ├── config.yaml│                   │   ├── keystore│                   │   │   └── priv_sk│                   │   ├── signcerts│                   │   │   └── User1@org2.example.com-cert.pem│                   │   └── tlscacerts│                   │       └── tlsca.org2.example.com-cert.pem│                   └── tls│                       ├── ca.crt│                       ├── client.crt│                       └── client.key├── crypto-config.yaml├── docker-compose.yaml
